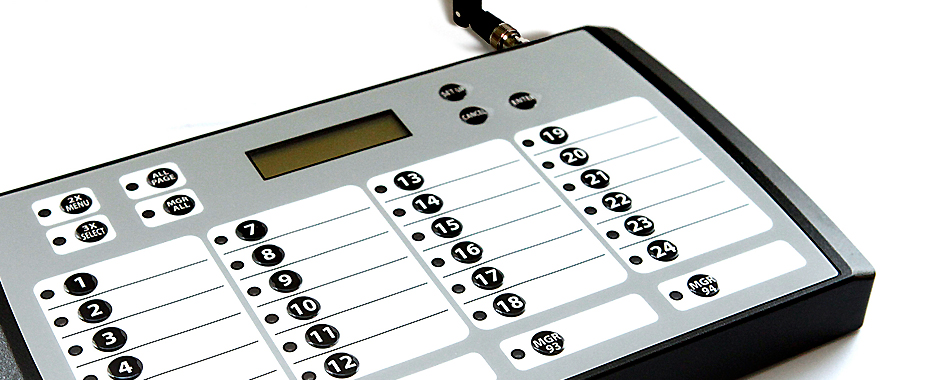

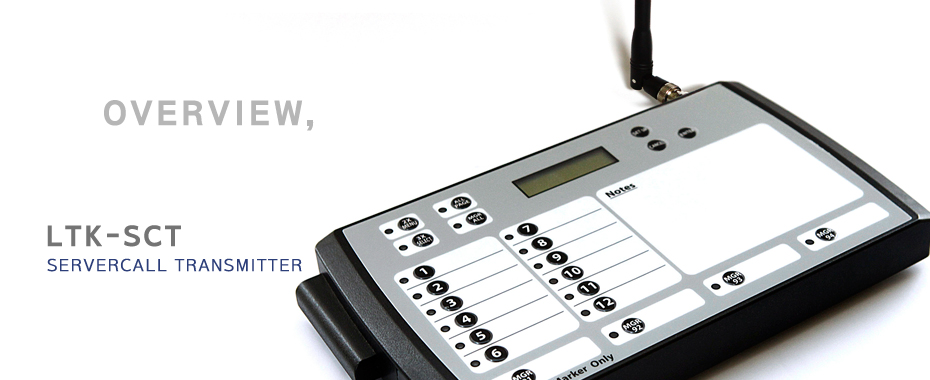

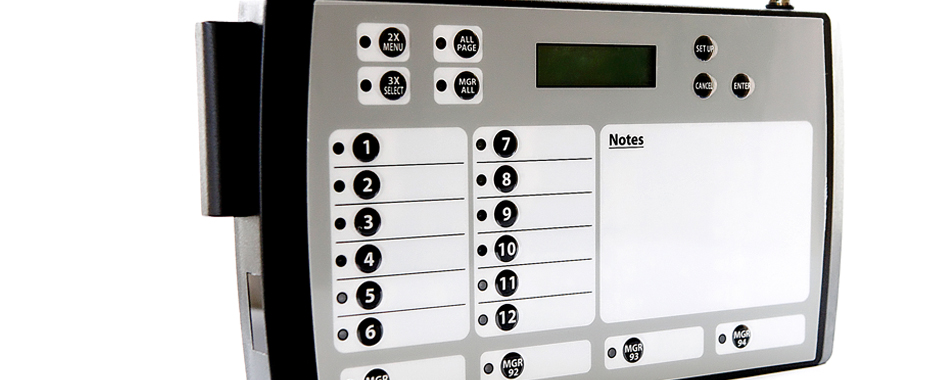

Servercall Transmitter

Model : LTK-SCT





Description

MENU OPTIONS.

CURRENT TIME
SLEEP TIME
RANGE TEST
PRESET MESSAGE
PAGER ALERT
DUTY ALERT
OUT OF RANGE
TRANSITION TIME
MANAGER PAGE
DEFAULT MSG
BASE ID
GROUP CALL ID
OUT OF RANGE ID
BAUD RATE
FREQUENCY

Spec & Features

Spectifications

Channel Spacing :12.5KHz
Spurious Rejection : -60dB
Emission Type :F1D
Modulation Scheme : FM(FSK)
Standard Deviation : ± 4.5 KHz
Dimension :W(180) X D(320) X H (30)
Occupied Bandwidth: ±8.5 KHz
Total Weight : 3.5 Kg
AC/DC adapter : DC 12V, MAX 3.5A
Frequency Stability : ±10 ppm
Code Format : POCSAG Code

Feature

Programmable through its setup menu
Easy and simple operation
Durable and Sturdy to withstand industry conditions
Selectable Pager Alert Mode
Auto Locate
All Pagers work on Single Transmitter Platform
Smart Charging System with own charger
Advertise with Insert Sheet
Unique Base
Smart Charging eliminates over-charging and extend battery life
